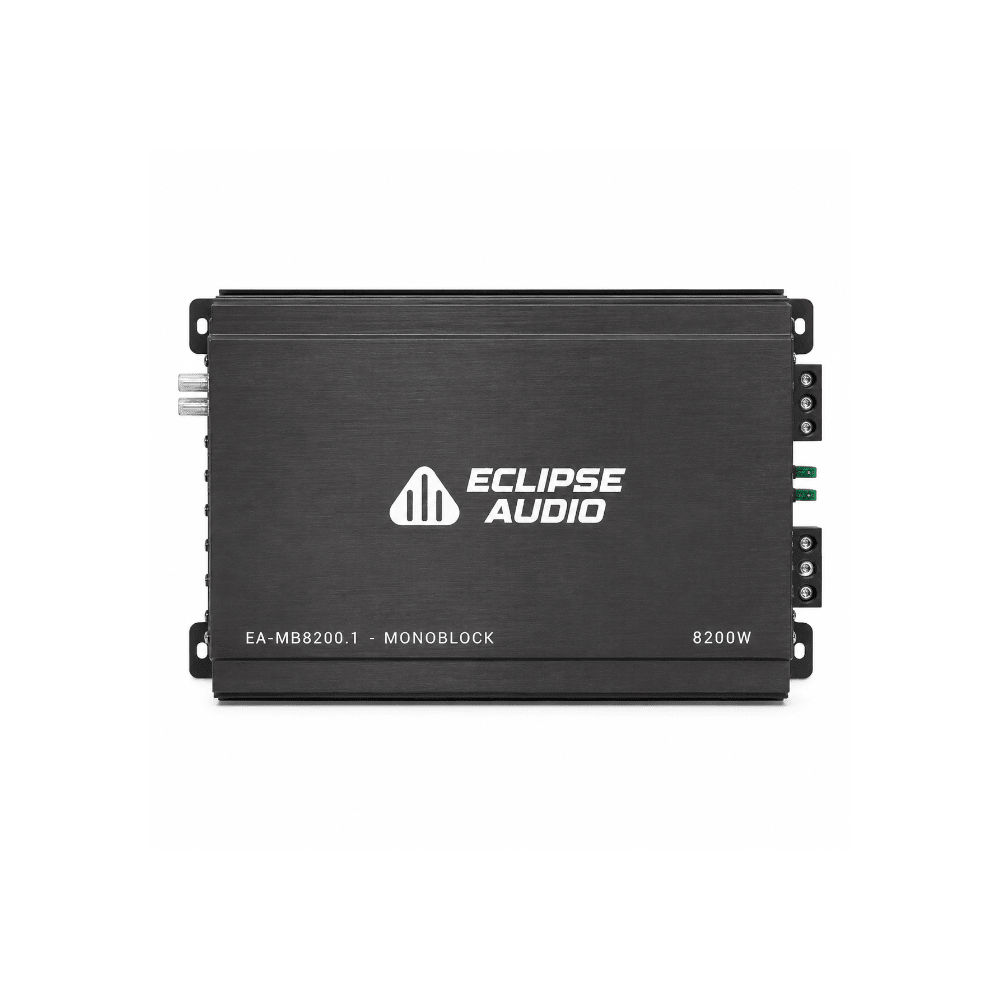

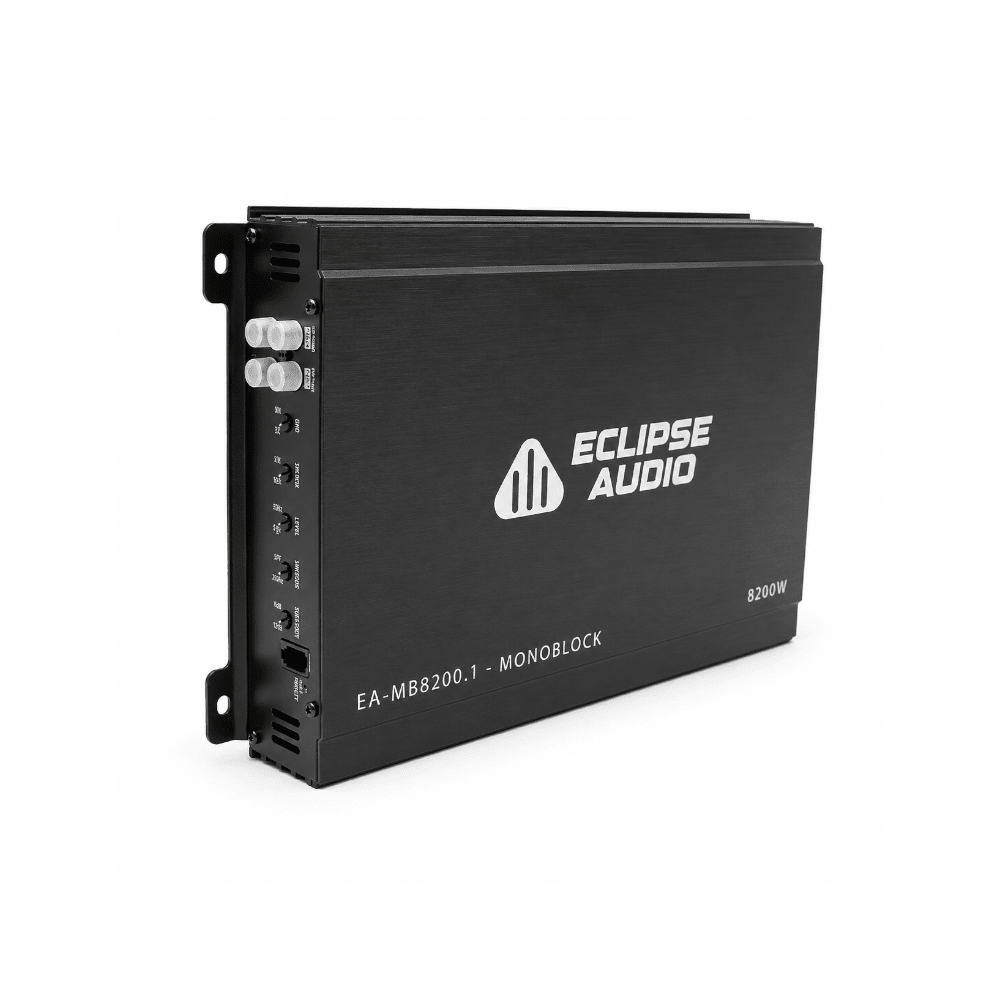

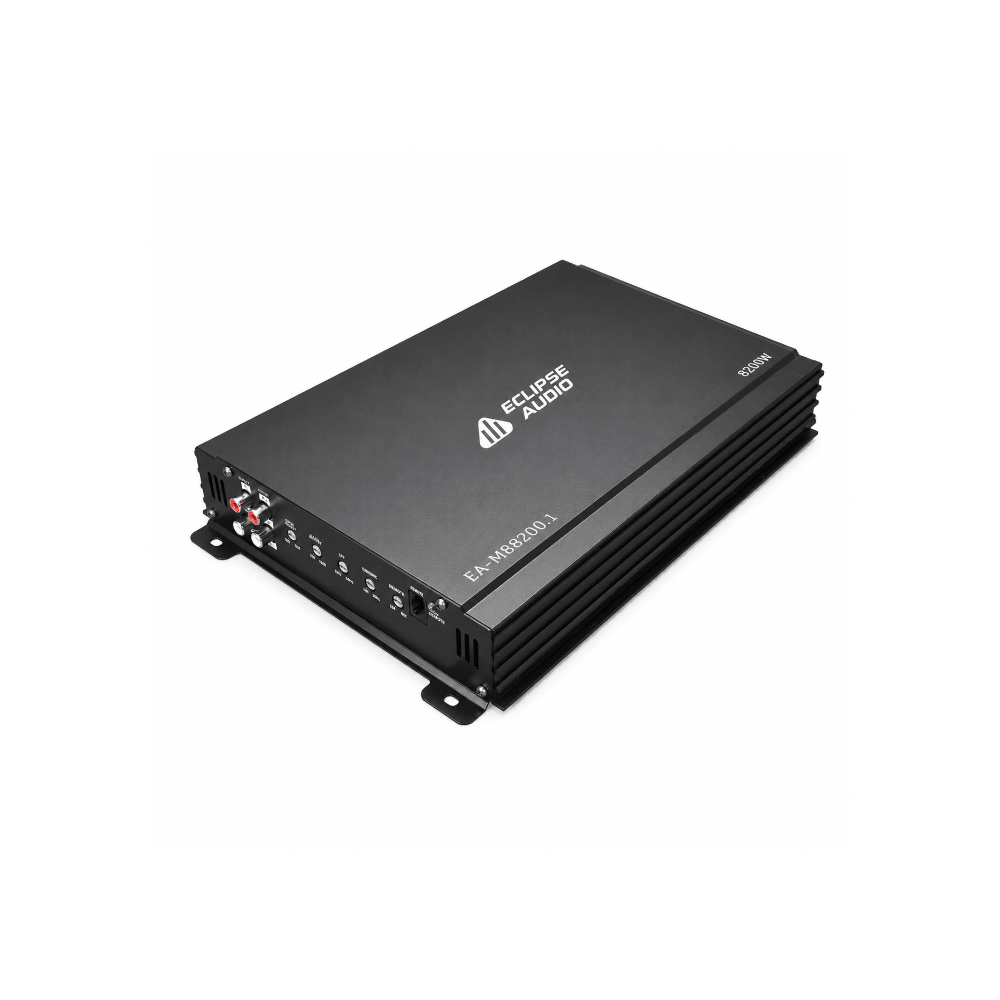

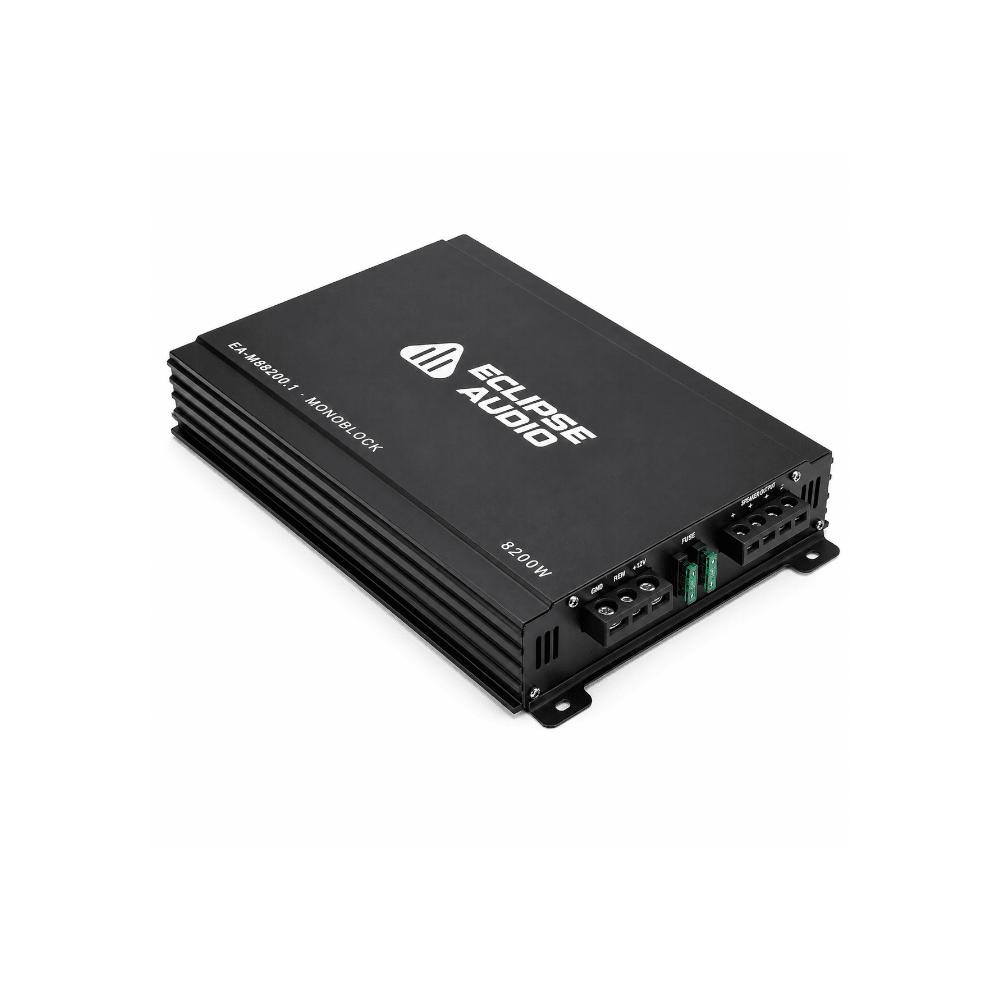

Eclipse Audio Class D Monoblock EA-MB8200.1

Eclipse Audio Class D Monoblock Amplifier

The Eclipse EA-MB8200-1 Class-D Monoblock Amplifier is built for deep bass performance and powerful subwoofer control. Designed with efficient Class-D technology, it delivers strong RMS power output with flexible crossover adjustments for precise bass tuning. This amplifier is ideal for high-performance subwoofer systems and demanding car audio installations.

Features

• Class-D monoblock amplifier
• Adjustable crossover controls
• Designed for subwoofer systems
• High-efficiency power delivery
• Powerful bass amplification
• Efficient energy performance
• Flexible tuning for custom audio setups

Specifications

• Power Output @ 4 Ohm: 220 W RMS × 1 (@1% THD)
• Power Output @ 2 Ohm: 340 W RMS × 1 (@1% THD)
• Power Output @ 1 Ohm: 500 W RMS × 1 (@1% THD)
• Maximum Power: 8 200 W
• Minimum Load: 1 Ohm (mono channel)
• Input Level: 200 mV – 6 V
• Frequency Response: 20 Hz – 250 Hz

Filters & EQ

• High-Pass Filter (HPF): 10 Hz – 50 Hz
• Low-Pass Filter (LPF): 30 Hz – 250 Hz
• EQ Boost: 0 – 12 dB

Power & Electrical

• Minimum Power Supply: 60 A
• Operational Voltage Range: 9 – 16 V
• Maximum Earth Impedance: 0.02 Ohms

Build & Connections

• Amplifier Technology: Class AB
• Power Terminal: 8 AWG
• Speaker Terminal: 14 AWG

What's in the box?

• 1 × Eclipse Monoblock Amplifier

Warranty?

• 12-Months
