FTS Audio Interface STUDIO22

FTS Audio Interface

The FTS STUDIO22 Audio Interface is designed for musicians, podcasters and content creators seeking clean and reliable recording performance. Featuring multiple input and output options, it allows seamless connection between microphones, instruments and computers. Ideal for home studios, it ensures low-latency audio capture and clear playback monitoring.

Features

• USB audio interface
• Microphone and instrument inputs
• Low-latency recording
• Compact studio design

Specifications

• Dimensions (L × W × H): 23.5 × 13.2 × 5.3 cm
• Weight: 0.6 kg

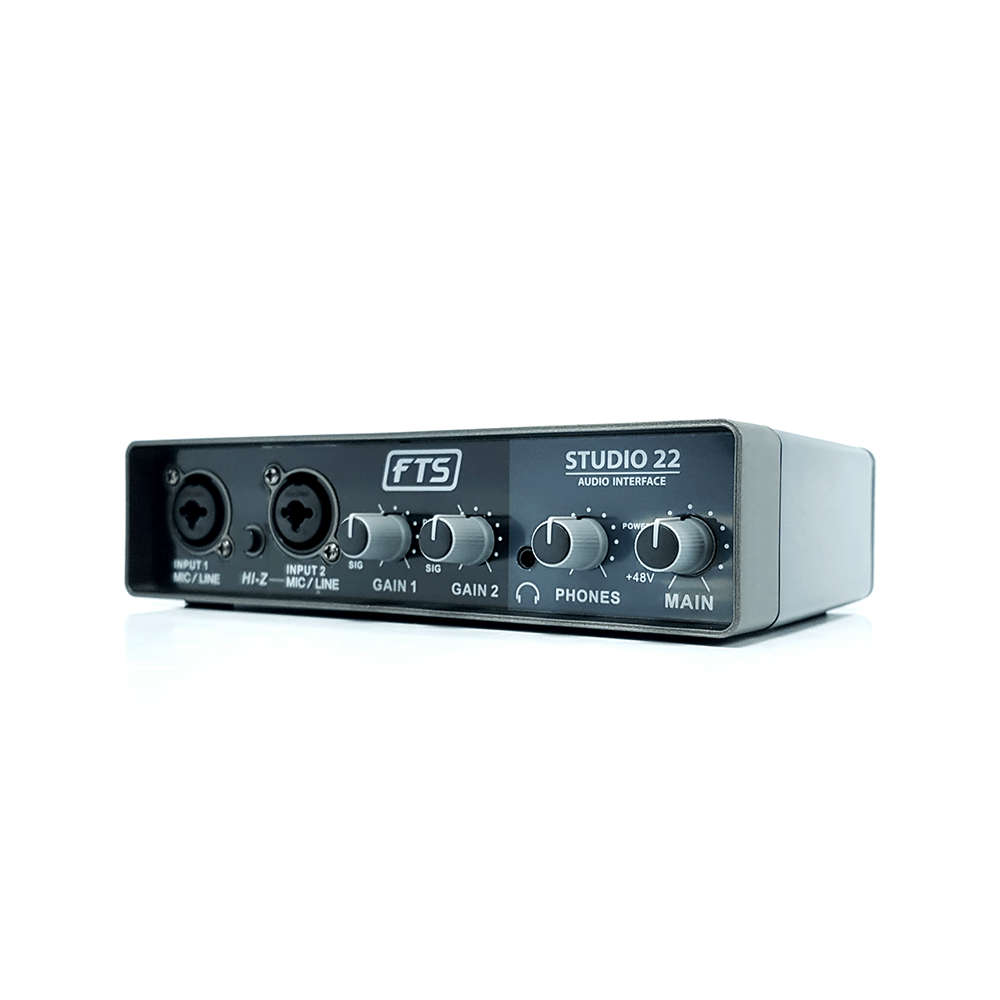

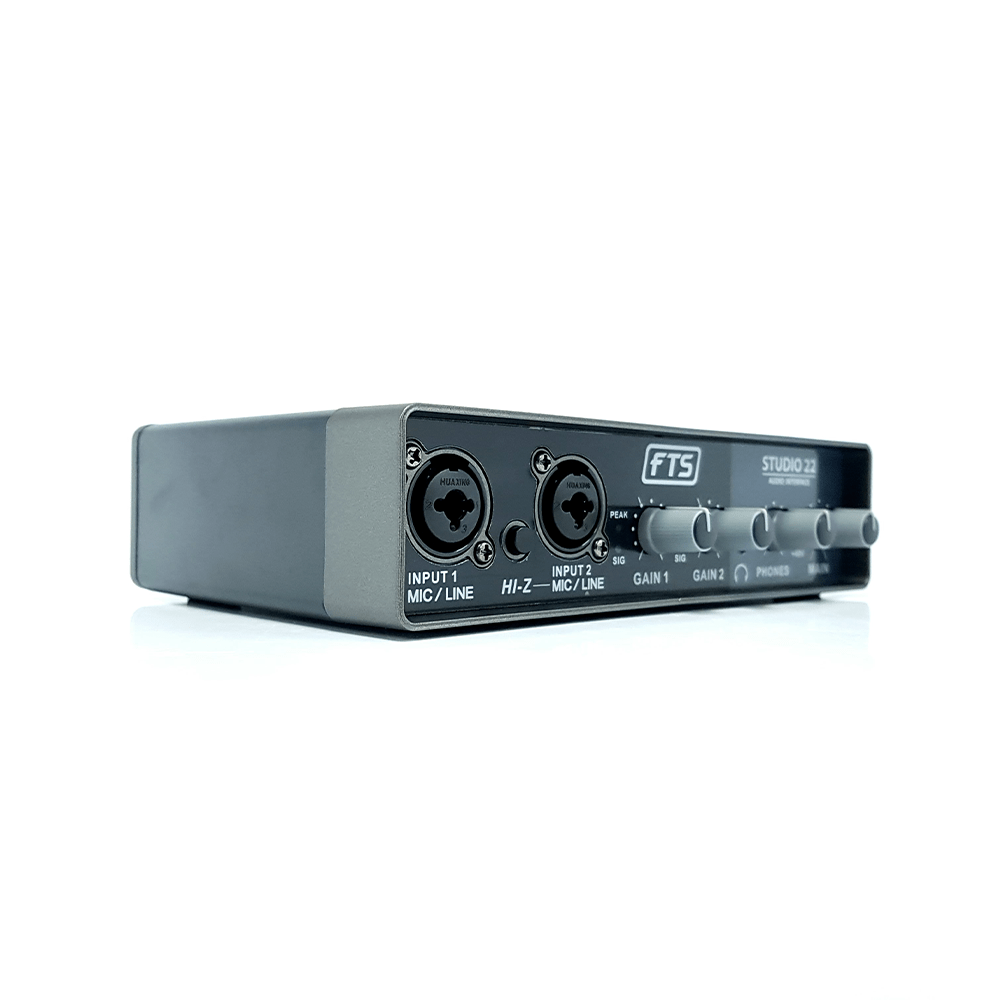

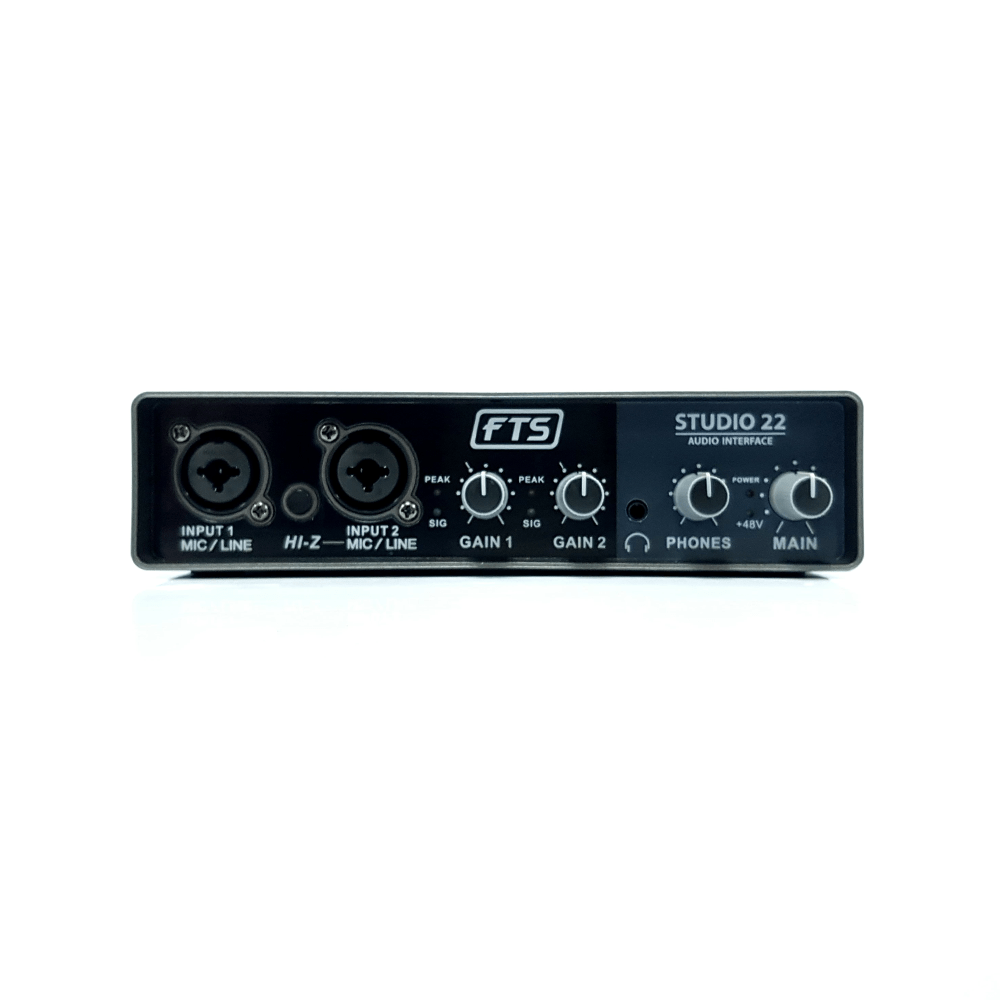

Front Panel Controls & Indicators

Inputs

• Input 1 (Microphone/Line 1): Supports XLR, ¼″ TS, and TRS plugs
• Input 2 (Microphone/Line 2): Supports XLR, ¼″ TS, and TRS plugs
• Hi-Z Switch: Activates instrument amplification for Input 2

Signal & Peak Indicators

• Input 1 Signal Light: Green LED indicates signal present
• Input 1 Peak Light: Red LED indicates signal overload (reduce Gain 1)
• Input 2 Signal Light: Green LED indicates signal present
• Input 2 Peak Light: Red LED indicates signal overload (reduce Gain 2)
• +48V Indicator Light: Green when phantom power is active
• Power Light: Red when the unit is powered on

Gain & Volume Controls

• Gain 1 Knob: Controls input gain for Input 1
• Gain 2 Knob: Controls input gain for Input 2
• Output Control: Adjusts main output volume
• Phones Control: Adjusts headphone volume

Headphone Output

• 3.5 mm TRS headphone jack

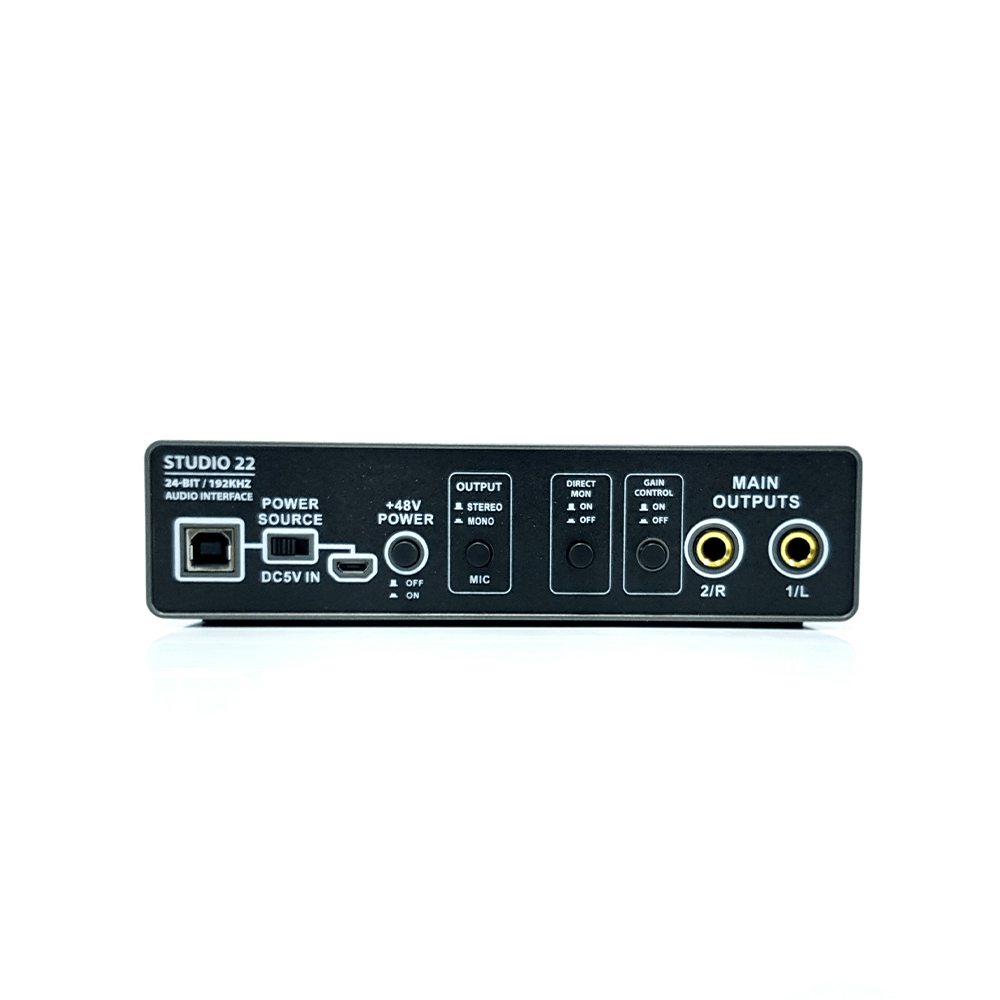

Power & Connectivity

• USB 2.0 Port: Connects the interface to computers or mobile devices (additional hardware/apps may be required)
• Power Source Switch: Selects power via USB 2.0 or Micro USB port
• 5V DC Port (Micro USB): Provides power when used with mobile devices
• +48V Switch: Activates phantom power for Inputs 1 & 2

Monitoring & Routing Controls

• Stereo/Mono Switch
• Pressed in: Mono playback
• Released: Stereo playback

• Monitor Switch

• Pressed in: Live input monitoring
• Released: Software audio playback

• Gain Control Mode:

• Pressed out: Gain controlled by hardware knobs
• Pressed in: Gain controlled via software

Outputs

• Main Outputs (L/R): ¼″ TRS connections

What's in the box?

• 1 × Audio Interface

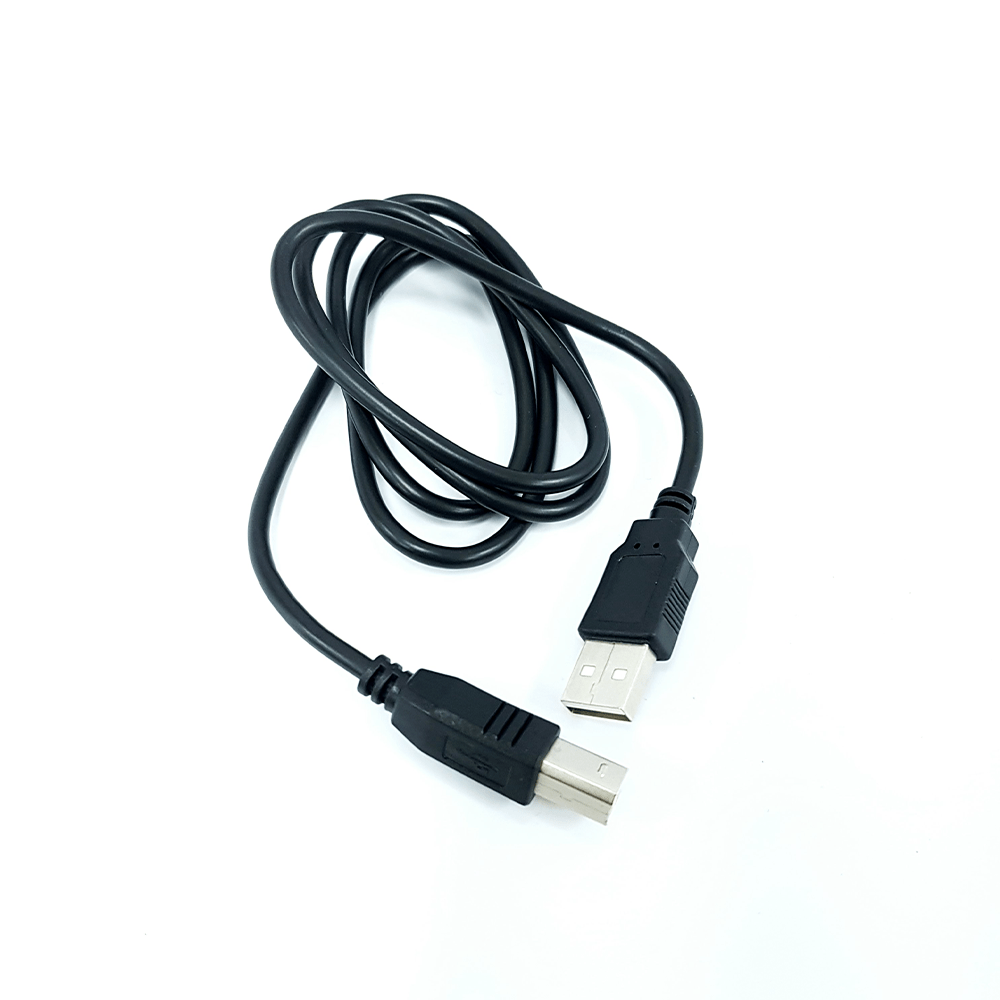

• USB cable
• User manual

Warranty?

• 12-Months
