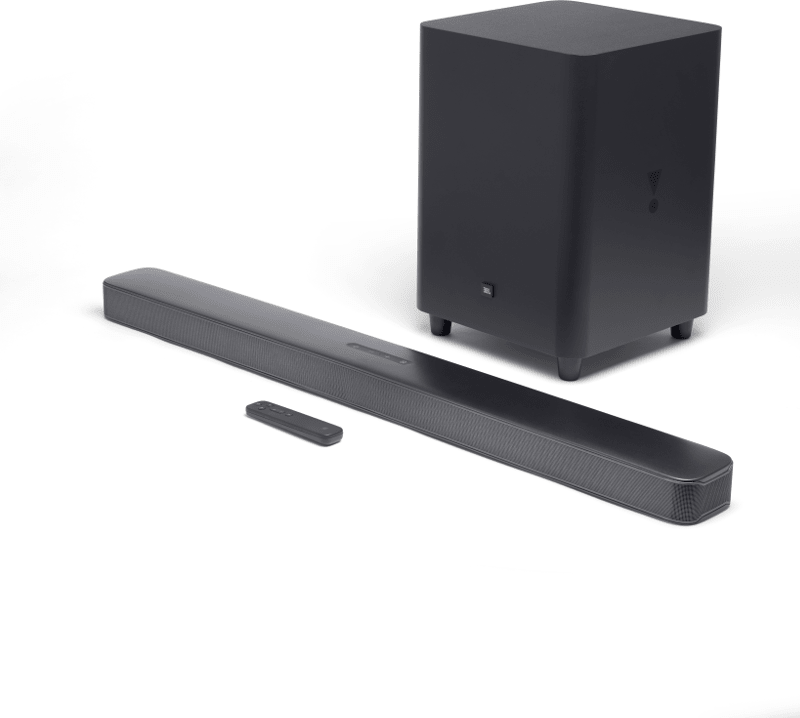

JBL Bar 5.1 Channel Soundbar with Subwoofer

JBL 5.1 Surround

5.1 Channel Soundbar with built-in Wi-Fi and 10" wireless subwoofer

 Brings all your entertainment to life.

JBL Bar 5.1 Surround is a sleek 5.1 channel soundbar with panoramic sound. Featuring 550W

of power and a 10" wireless subwoofer for ground-shaking bass delivering an epic movie

viewing experience. Music streaming fans will also appreciate the built-in WiFi that allows

seamlessly integrated with Chromecast and Airplay 2 to effortlessly work with Google Home

and HomePod. This full-featured soundbar doesn't stop there. In addition to JBL proprietary

beamforming technology that delivers room filing cinematic sound, the JBL Bar 5.1 Surround

is also compatible with your 4K ultra high-definition video and conveniently allows for Blu-ray disc player, gaming console and mobile device connections.

Features

• Panoramic surround sound
• 550W output power
• 10" wireless subwoofer
• 4K pass-through with HDR 10
• and Dolby VisionTM
• Built-in Chromecast and Airplay 2
• Bluetooth®
• Dolby 5.1 and Pro Logic II

Technical specifications:

• Power supply: 100 – 240VAC, ~ 50/60Hz
• Total speaker power output (Max. @THD 1%): 550W
• Soundbar output power (Max. @THD 1%): 5 x 50W
• Subwoofer output power (Max. @THD 1%): 300W
• Soundbar transducer: 5 x racetrack drivers +
• 2 x 1.25" side-firing tweeters
• Subwoofer transducer: 10"
• Operating temperature: 0°C – 45°C

Video

HDMI Video input: 1

HDMI Video output (With Audio return channel): 1

HDMI HDCP version: 2.2

Audio

Max SPL: 103dB(TBC)

Frequency response: 40Hz – 20kHz (TBC)

Audio inputs: 1 Optical, Bluetooth, USB

(USB playback is available in US version.

For other versions, USB is for Service only.)

USB (For service only except US version)

USB port: Type A

USB rating: 5VDC/0.5A

Supporting file format: mp3, wav

MP3 Codec: MPEG 1 Layer 2/3

MPEG 2 Layer 3

MPEG 2.5 Layer 3

MP3 sampling rate: 16kHz – 48kHz

MP3 bitrate: 80kbps – 320kbps

WAV sample rate: 16kHz – 48kHz

WAV bitrate: Up to 3000kbps

Wireless

Bluetooth version: 4.2

Bluetooth profile: A2DP V1.3/AVRCP V1.5

Bluetooth frequency range: 2402MHz–2480MHz

Bluetooth Max. transmitting power: <10dbm (EIRP)

Modulation type: GFSK, π/4 DQPSK, 8DPSK

WiFi frequency range: 2.4GHz/5GHz (802.11b/g/n/ac)

Dimensions

Soundbar dimensions (W x H x D): 1018 x 58 x 100 (mm) / 40" x 2.28" x 3.94"

Subwoofer dimensions (W x H x D): 305 x 440 x 305 (mm) / 12" x 17.3" x 12"

Soundbar weight: 2.85kg

Subwoofer weight: 10.62kg

What's in the box:

1x Soundbar

1x Wireless subwoofer

Remote control with batteries

Power cords (up to 8pcs depending on region SKUs)

HDMI cable

Wall-mount bracket kit with screws

Quick start guide

Warranty card

Safety sheet
